Pedestrian and Vehicle Segregation in the Warehouse: The Hierarchy of Controls, As We Apply It

Almost every site I visit already knows the answer to the segregation question. Managers can tell me, before I have finished my first lap of the floor, that physical separation beats a painted line and that a barrier beats a briefing. The knowing was never the problem. What I see is the gap between what a site knows and what ends up on the floor.

That gap is completely understandable. Physical separation is a capital job; floor paint and a toolbox talk come out of a smaller, faster pot. So the stronger control gets planned, then deferred, and the site runs on the less effective one in the meantime, until "for now" becomes permanent.

This article walks through the hierarchy of controls as we apply it to pedestrian and vehicle segregation, from the first site visit to handover. Not the textbook order, but honest insights on which controls remain effective once the site is live, and which depend on people getting it right every time.

In this article

1. What is pedestrian and vehicle segregation in a warehouse?
2. What is the hierarchy of controls in warehouse safety?
3. Why do good segregation plans drift down the hierarchy?
4. Which controls remain effective once the site is running?
5. Why designing for how people move matters most
6. A real example: Encirc's Despatch Area
7. Frequently asked questions

What Is Pedestrian and Vehicle Segregation in a Warehouse?

Pedestrian and vehicle segregation means keeping people and moving vehicles, such as FLTs, HGVs and pallet trucks, physically apart so their paths do not compete for the same floor.

It is not optional good practice. Under Regulation 17 of the Workplace (Health, Safety and Welfare) Regulations 1992, every workplace must be organised so that pedestrians and vehicles can circulate safely, with sufficient separation where they share a route. The HSE’s own guidance, HSG136: A Guide to Workplace Transport Safety, is clearer still: the main aim of any site design should be to segregate vehicles from pedestrians, and the most effective way to protect people is to give them entirely separate routes.

So the standard is clear. The interesting part is how sites move toward it, or do not.

What Is the Hierarchy of Controls in Warehouse Safety?

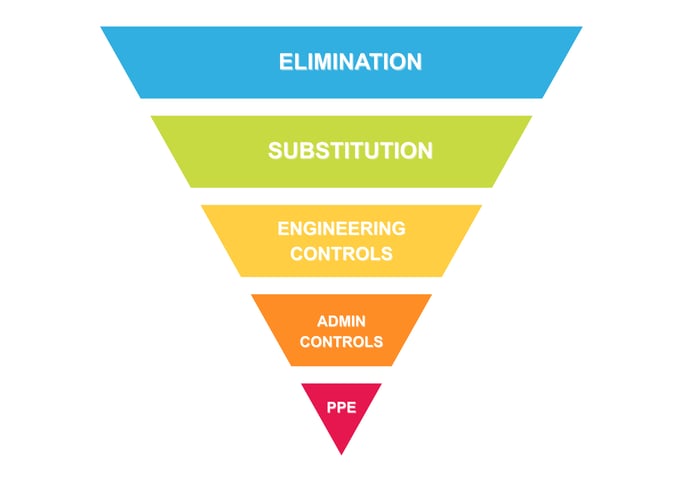

The hierarchy of controls ranks safety measures by how reliably they reduce risk, from most effective to least. Applied to segregation, it runs roughly like this:

• Eliminate the conflict entirely: separate entrances, separate routes, a footbridge, so people and vehicles never share ground.

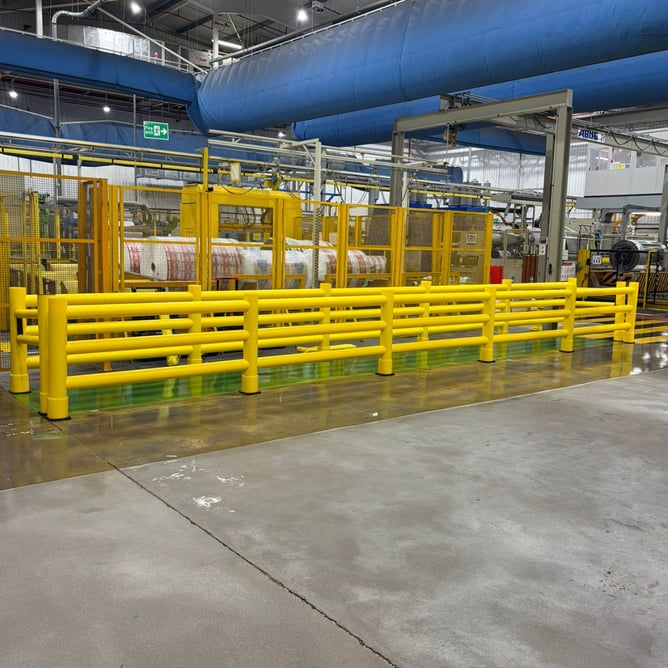

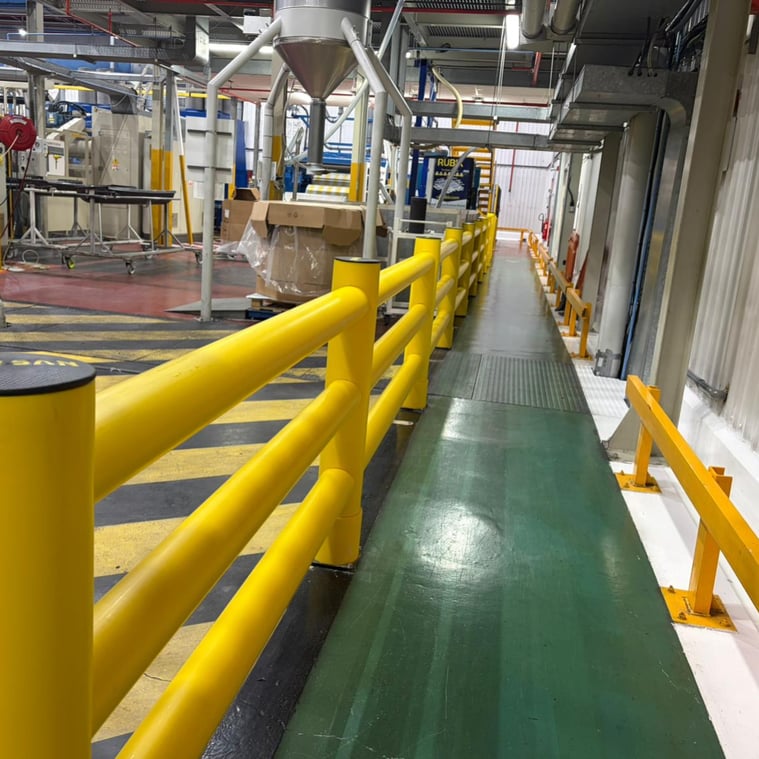

• Engineering controls for physical separation where paths must run close: polymer safety barriers, pedestrian walkways, self-closing gates.
• Managed crossings where routes have to cross: a designed crossing point with barriers, gates or signals, never an informal gap.
• Administrative controls such as one-way systems, speed limits, floor markings, signage, training and banksmen.
• PPE such as hi-vis clothing: the last line, not the first.

Every site I visit knows this order. The question is never whether they know it. It is where they end up applying it.

Why Do Good Segregation Plans Drift Down the Hierarchy?

Here is the pattern I see from the first site visit onward. The plan is written at the top, "we will separate the routes", and delivered from the bottom, a line and a briefing. Three honest pressures pull it down.

Cost and phasing

Physical separation is a capital project. Paint, signs and a toolbox talk are cheap and immediate. When budgets are tight, the fast control wins the day and the strong control joins next year’s list.

Disruption

Barriers and walkways change how a site runs: routes, deliveries, where the FLTs turn. Markings change nothing operationally, so they feel like the path of least resistance for the business, not just for the pedestrian.

"It is fine for now"

A fresh line and a signed-off briefing feel like the risk has been handled. The stronger control gets deferred once, then again, and the interim becomes the permanent.

None of that is negligence. Each is a defensible call under real constraints. But it explains why so many sites know the right answer and still run on the weak version of it, and why the same three points are where plans tend to fail.

Which Controls Remain Effective Once the Site Is Running?

This is the part the textbook order does not tell you. The real test of a control is not where it sits on the pyramid; it is whether it still works at 4pm on a Friday, during a shift change, with an agency driver who started on Monday.

The single most useful question we ask on site is this: does this control depend on a person choosing correctly in the moment? If it does, it will fail eventually, because people under pressure take the shortest path, not the safest one. If it does not, it holds.

Why Designing for How People Move Matters Most

The reason engineering controls hold and administrative ones drift comes down to one thing: how people move. Workers follow the path of least resistance. Always. If the marked walkway adds a hundred metres to a journey a direct line covers in ten, people will cut across the vehicle route, not because they are reckless, but because the layout asked them to choose between fast and safe, and fast usually wins.

The HSE makes exactly this point. Its guidance says pedestrian routes should follow "desire lines", the paths people naturally take across a site, rather than the routes that looked tidy on a drawing. A walkway drawn without walking the site is a walkway that exists on the plan and nowhere in behaviour.

So the first thing we do on a site visit is watch. Where do people actually cut through? Where does the bay get busy at shift change? Get the route right, and the barrier reinforces a path people were already going to take. Get it wrong, and the strongest barrier in the world just becomes the thing people walk around.

A Real Example: Encirc's Despatch Area

Encirc's Elton site is one of the UK's largest glass manufacturing operations, running around the clock with thousands of vehicle and pedestrian movements a day. Their despatch area had the problems you would expect at that scale: the existing barrier system had faded, there was no clear reversing guide for HGV drivers, and there were no pedestrian gates or controlled crossings.

What I would point to is the gates. We installed pedestrian gates and controlled access points that require people to stop and check before entering a vehicle zone. That is the difference between asking someone to be careful and building the pause into the route itself. The person still makes a decision, but the layout forces the decision to happen, at the right moment, instead of hoping it occurs to them.

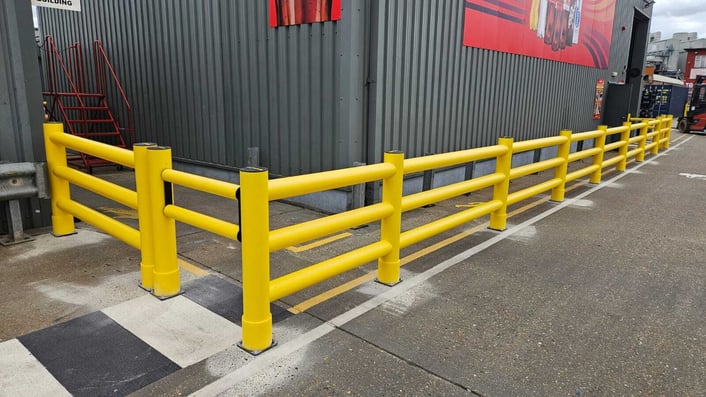

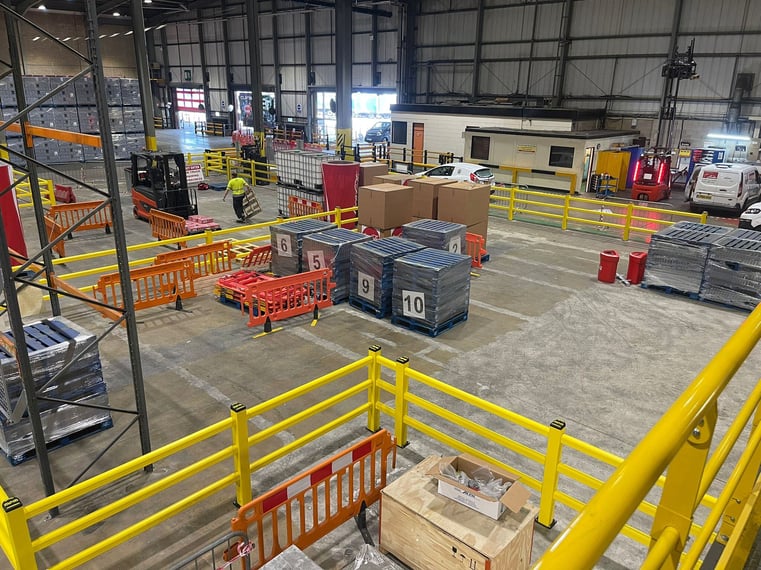

Alongside that went high-durability polymer barriers, defined reversing lanes giving drivers a clear visual guide, and protected working areas so FLT operators can load without watching their backs. Instead of thinking of these things as individual controls, a full system was built.

FAQs:

Is pedestrian and vehicle segregation a legal requirement in the UK?

Yes, in effect. Regulation 17 of the Workplace (Health, Safety and Welfare) Regulations 1992 requires workplaces to be organised so that pedestrians and vehicles can circulate safely, with sufficient separation where they share routes. Failing to follow HSE guidance such as HSG136 can be used as evidence of a breach.

What is the most effective form of pedestrian and vehicle segregation?

Entirely separate routes, so people and vehicles never share ground, which is the top of the hierarchy. Where that is not possible, physical engineering controls such as barriers and gated walkways are the next most reliable, because they hold the separation without depending on anyone choosing correctly.

Do painted floor lines count as segregation?

They are a useful administrative control, but on their own they are one of the weakest, because they rely on every person following them every time. Lines work best reinforcing physical separation, not replacing it.

Not sure where your site sits on this hierarchy, or where the weak points are? That is exactly what a site assessment is for. We walk the floor, map how people actually move, and show you which controls are holding and which are drifting.

You can also take our two-minute factory safety quiz, or read Who Really Has Right of Way in a Warehouse? for the right-of-way side of the same question.
